Product informationDi-
functional
type
- HOME
- Product information
- Di-functional type
Used mainly for adhesives that require gentle cross-linking. Because of its low viscosity, it has a great dilution effect and is also used in paints that use high-viscosity materials. "EX-800 Series" is an aliphatic difunctional epoxy resin based on ethylene glycol, and all grades have low viscosity and high water solubility. In addition, by selecting the chain length, it is possible to control the crosslinking density and to add hydrophilicity and flexibility.

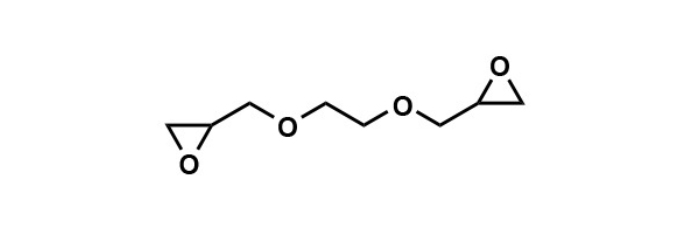

DENACOL EX-810 Hot Grade
- Chemical name :
- Ethylene Glycol Diglycidyl Ether
- Features
-
- Di-Functional Aliphatic type
- Water solubility
- Low viscosity & chlorine content
- Flexibility
- Application example
-
- Crosslinker for waterborne paint
- Hydrophilizing agent
- Flexibility-imparting agent
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content (％) |
Color value (APHA) |
Water solubility(％) | Packaging |
| 113 | 20 | 0.6 | 20 | 100 | 20kg、220kg |
DENACOL EX-811
- Chemical name :
- Ethylene Glycol Diglycidyl Ether
- Features
-
- Di-Functional Aliphatic type
- Water solubility
- Low viscosity
- Flexibility
- Application example
-
- Crosslinker for waterborne resin
- Hydrophilizing agent
- Flexibility-imparting agent
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content(％) | Color value (APHA) |
Water solubility(％) | Packaging |
| 132 | 20 | 9.7 | 10 | 98 | 20kg、220kg |
DENACOL EX-850
- Chemical name :
- Polyethylene Glycol Diglycidyl Ether
- Features
-
- Di-Functional Aliphatic type
- Water solubility
- Low viscosity & chlorine content
- Flexibility
- Application example
-
- Crosslinker for waterborne resin
- Hydrophilizing agent
- Flexibility-imparting agent
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content(％) | Color value (APHA) |
Water solubility(％) | Packaging |
| 122 | 20 | 0.5 | 30 | 100 | 20kg、200kg |
DENACOL EX-851
- Chemical name :
- Polyethylene Glycol Diglycidyl Ether
- Features
-
- Di-Functional Aliphatic type
- Water solubility
- Low viscosity
- Flexibility
- Application example
-
- Crosslinker for waterborne resin
- Hydrophilizing agent
- Flexibility-imparting agent
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content(％) | Color value (APHA) |
Water solubility(％) | Packaging |
| 150 | 30 | 7.5 | 10 | 99 | 20kg |
DENACOL EX-821
- Chemical name :
- Polyethylene Glycol Diglycidyl Ether
- Features
-
- Di-Functional Aliphatic type
- Water solubility
- Low viscosity
- Flexibility
- Application example
-
- Crosslinker for waterborne resin
- Hydrophilizing agent
- Flexibility-imparting agent
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content(％) | Color value (APHA) |
Water solubility(％) | Packaging |
| 185 | 40 | 4.5 | 30 | 100 | 20kg、200kg |
DENACOL EX-830
- Chemical name :
- Polyethylene Glycol Diglycidyl Ether
- Features
-
- Di-Functional Aliphatic type
- Water solubility
- Low viscosity & chlorine content
- Flexibility
- Application example
-
- Crosslinker for waterborne resin
- Hydrophilizing agent
- Flexibility-imparting agent
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content(％) | Color value (APHA) |
Water solubility(％) | Packaging |
| 268 | 70 | 0.3 | 40 | 100 | 20kg、200kg |
DENACOL EX-832
- Chemical name :
- Polyethylene Glycol Diglycidyl Ether
- Features
-
- Di-Functional Aliphatic type
- Water solubility
- Low viscosity
- Flexibility
- Application example
-
- Crosslinker for waterborne resin
- Hydrophilizing agent
- Flexibility-imparting agent
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content(％) | Color value (APHA) |
Water solubility(％) | Packaging |
| 284 | 90 | 7.3 | 10 | 100 | 20kg |
Please feel free to contact us for sample requests and detailed product information.
DENACOL EX-841
- Chemical name :
- Polyethylene Glycol Diglycidyl Ether
- Features
-
- Di-Functional Aliphatic type
- Water solubility
- Low viscosity
- Flexibility
- Application example
-
- Crosslinker for waterborne resin
- Hydrophilizing agent
- Flexibility-imparting agent
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content(％) | Color value (APHA) |
Water solubility(％) | Packaging |
| 372 | 110 | 1.9 | 30 | 100 | 20kg |
DENACOL EX-201
- Chemical name :
- Resorcinol Diglycidyl Ether
- Features
-
- Di-Functional type
- Hydrophobic
- Low Chlorine content
- Application example
-
- Adhesion for electronic materials
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content(％) | Color value (Gardner) |
Water solubility(％) | Packaging |
| 117 | 250 | 0.7 | 3 | Insoluble | 20kg |
DENACOL EX-211 Hot Grade
- Chemical name :
- Neopentyl Glycol Diglycidyl Ether
- Features
-
- Di-Functional Aliphatic type
- Hydrophobic
- Low viscosity
- Application example
-
- Reactive diluent
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content(％) | Color value (APHA) |
Water solubility(％) | Packaging |
| 138 | 20 | 5.7 | 10 | Insoluble | 18kg、200kg |
DENACOL EX-212
- Chemical name :
- 1,6-Hexanediol Diglycidyl Ether
- Features
-
- Di-Functional Aliphatic type
- Hydrophobic
- Low viscosity
- Application example
-
- Reactive diluent
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content(％) | Color value (APHA) |
Water solubility(％) | Packaging |
| 151 | 20 | 6.1 | 30 | Insoluble | 18kg、200kg |
DENACOL EX-252 Hot Grade
- Chemical name :
- Hydrogenated Bisphenol A Diglycidyl Ether
- Features
-
- Di-Functional Aliphatic type
- Hydrophobic
- High weather resistant
- Application example
-
- Crosslinker for paint
- UV curing resin
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content (％) |
Color value (APHA) |
Water solubility(％) | Packaging |
| 213 | 2,200 | 4.5 | 10 | Insoluble | 18kg、 200kg |
DENACOL EX-920
- Chemical name :
- Polypropylene Glycol Diglycidyl Ether
- Features
-
- Di-Functional Aliphatic type
- Water solubility
- Low viscosity
- Low chlorine content
- Application example
-
- Crosslinker for waterborne resin
- Surface preparation agent for fiber
- Resin modifier
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content(％) | Color value (APHA) |
Water solubility(％) | Packaging |
| 176 | 20 | 0.8 | 100 | 100 | 18kg |
DENACOL EX-931
- Chemical name :
- Polypropylene Glycol Diglycidyl Ether
- Features
-
- Di-Functional Aliphatic type
- Hydrophobic
- Low viscosity
- Flexibility
- Application example
-
- Crosslinker for paint and adhesion
- Surface preparation agent for fiber
- Flexibility-imparting agent
SWIPE
| Epoxy equivalent (g/eq.) |
Viscosity (ｍPa・s) |
Total chlorine content(％) | Color value (APHA) |
Water solubility(％) | Packaging |
| 471 | 130 | 3.9 | 20 | Insoluble | 18kg |
※Each property and data introduced in this page, it is a representative value, NOT a guaranteed value. Also, please note that the specifications of the products are subject to change without notice.
Please feel free to contact us for sample requests and detailed product information.
