Search by Application

Acrylic resin cross-linking agent

Acrylic resin water resistance improver

Features
・Water resistance is improved by adding DENACOL to a water-soluble acrylic resin.
Recommended Grade

EX-614B

EX-313

EX-810

SWIPE

Resin Cross-linking agent Additive amounts(％) Drying condition Bleaching time
Acrylic polymer
A		 - 0 4 minutes
EX-313 5 10 minutes at 100°C 10 hours or more
EX-614B 5 10 hours or more
Acrylic polymer
B		 - 0 2 minutes
EX-313 5 10 minutes at 140°C 10 minutes
EX-614B 5 10 hours or more

※The time required to prepare a film (0.03 mm film thickness after drying) on a glass plate and immerse it in a mixed bath at 70°C until the film whitens

※The time required to prepare a film (0.03 mm film thickness after drying) on a glass plate and immerse it in a mixed bath at 70°C until the film whitens

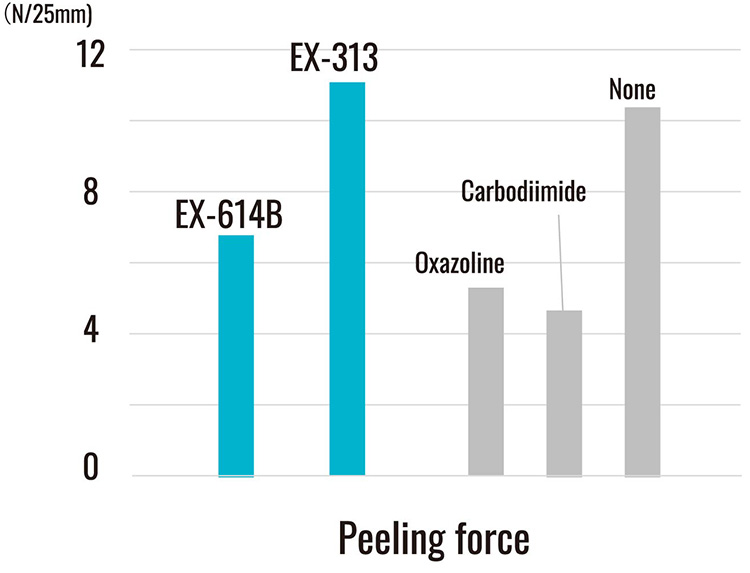

Adhesives

Features

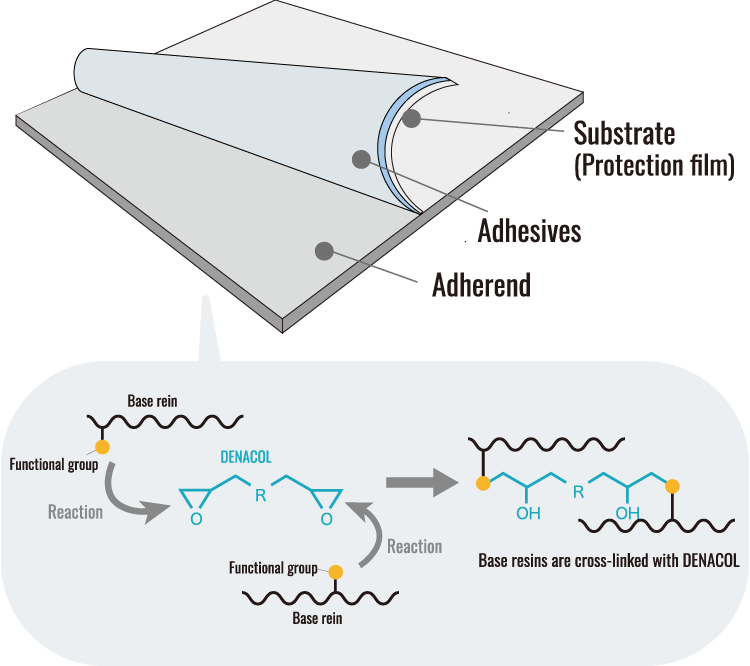

  • Cross-linking of functional groups of the base resins reduce the adhesive residue on the adherend.
Recommended Grade

EX-313

EX-421

EX-614B

EX-512

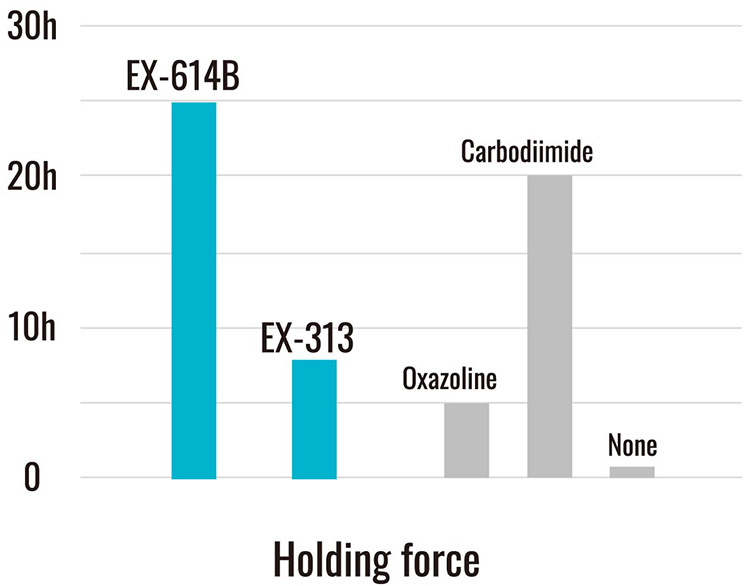

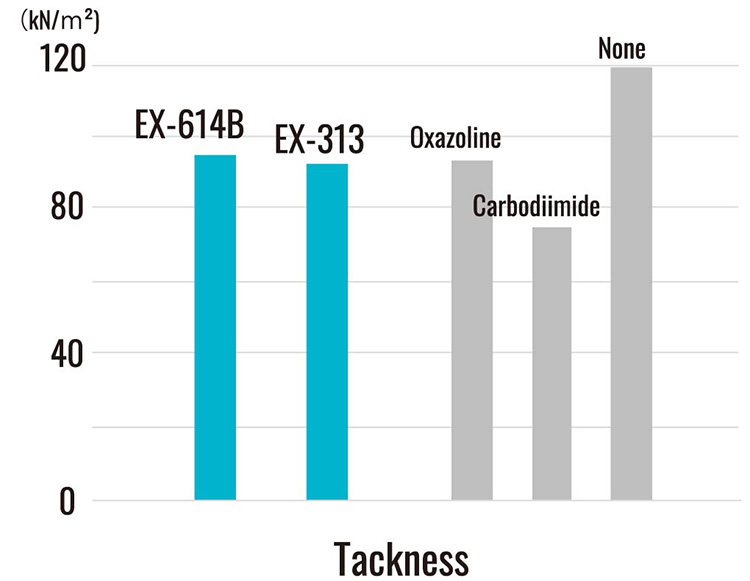

Preparation of Adhesive tape

  • Acrylic resin emulsion(NV:65%)：Cross linker (as Solid)＝100：0.6
  • Substrate：PET film
  • Thickness：30µm
  • Cure condition：100℃×2min→60℃×24ｈ

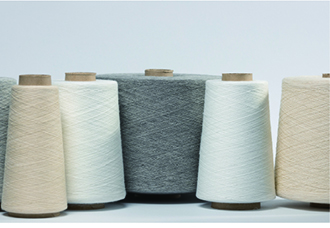

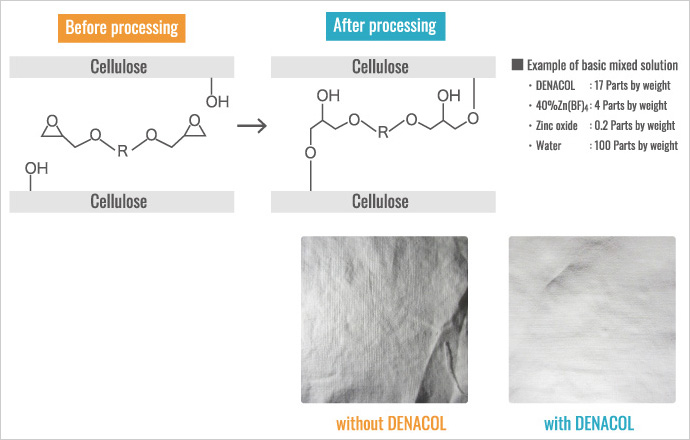

Treating agent for fibers

Anti-wrinkle imparting agent for cotton fiber

Features
  • By cross-linking hydroxyl groups of fibers (cellulose), the structure is fixed, and wrinkles are less likely to form.
  • Improves a wrinkle-resistant property (anti-wrinkle), making it suitable in the development of handkerchiefs and shirts.
Recommended Grade

EX-810

EX-861

EX-313

繊維用処理剤に関連するした処理前後の画像

Resin stabilizer

Halogen Catcher

Features
  • Functions as a catcher of chlorine that is desorbed from chlorine-based resins (prevents resin deterioration)
  • Capturing hydrochloric acid to prevent acid deterioration and corrosion
Example of use
・In cases such as vinyl chloride emulsions, epoxy is used for aqueous resins.
Recommended Grade

EX-121

EX-141

EX-192

樹脂安定剤に関連する画像

Resin modifier

Features
  • Application of monofunctional type epoxy
  • Increases hydrophilicity or hydrophobicity of the base resins that contain reactive functional groups.
Recommended Grade
樹脂改質剤に関連する画像

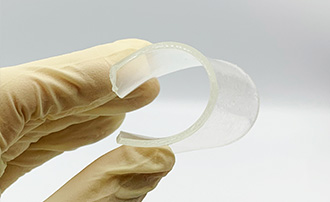

Flexibilizer

Features
  • Improves the flexibility of epoxy curing agent
Recommended Grade

EX-991L

EX-861

柔軟性付与剤に関連する画像

Formulation ingredient

SWIPE

Component Add EX-991L
（Parts by weight）		 Reference
（Parts by weight）
Base resin EP-BPA
(Bisphenol A Liquid Epoxy Resins)		 70 100
Flexibility-imparting agent DENACOL EX-991L 30 0
Curing agent Isophoronediamine 17 24

※Curing conditions：80℃×4h ⇒ 150℃×1h

※Curing conditions：80℃×4h ⇒ 150℃×1h

Measurement data

SWIPE

Test item Add EX-991L Reference
Tg（℃） 80 158
Storage modulus（GPa） 1.4 2.2
Flexural strength（MPa） 79 125
Flexural modulus（GPa） 2.0 2.8
Water absorption rate（%） 0.8 0.3
柔軟性付与剤に関連する画像 柔軟性付与剤に関連する画像

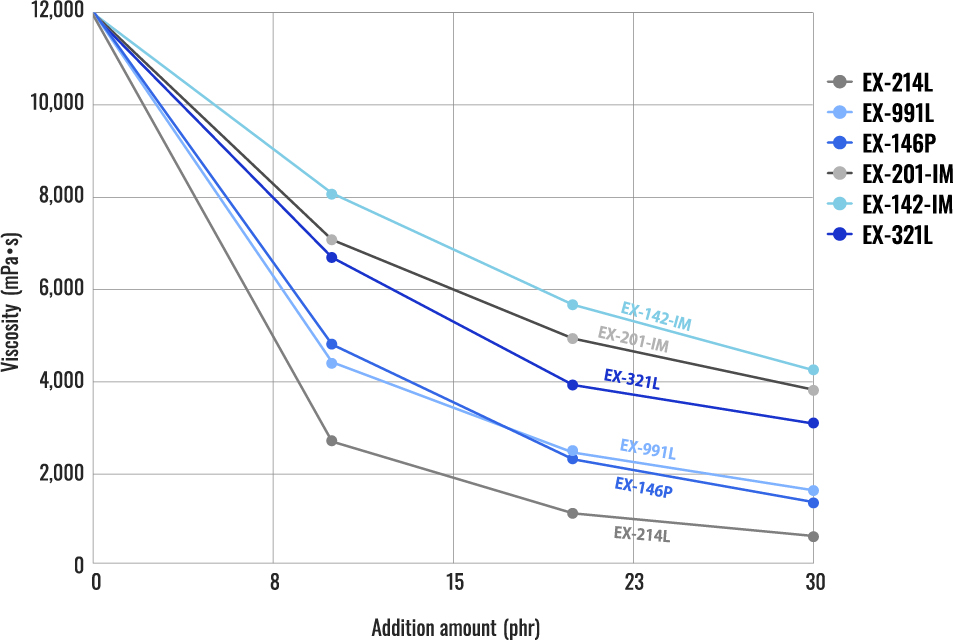

Reactive diluent

Features
  • Addition of low-viscosity DENACOL to high-viscosity base resin improves handling property.
  • Unlike dilution with solvents, DENACOL has reactive functional groups, so there is no need to remove solvents before curing, and it can be cured with them.
Recommended Grade

EX-121

EX-141

EX-146

EX-211

EX-810


EX-313

EX-321

EX-321L

SWIPE

Product
name		 Type Viscosity(mPa・s)
General
Properties		 Addition amount
10phr		 Addition amount
20phr		 Addition amount
30phr
EP-BPA
(Bisphenol A Liquid
Epoxy Resins)		 - 12,000 - - -
EX-121 Mono-functional
type		 4 1,590 587 223
EX-146 Mono-functional
type		 20 4,820 2,570 1,640
EX-211 Di-functional
type		 20 3,600 1,710 918
EX-810 Di-functional
type		 20 3,090 1,300 774
EX-313 Multi-functional
type		 150 5,280 3,090 2,180
EX-321 Multi-functional
type		 130 5,810 3,570 2,420

※Each property and data introduced in this page, it is a representative value, NOT a guaranteed value. Also, please note that the specifications of the products are subject to change without notice.

Please feel free to contact us for sample requests and detailed product information.
